Features
Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
Drilling bits:
Top: Vertical 9pcs + Horizontal 8pcs
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
6 sides drilling and 2 sides milling
One time processing can complete panel 6-side drilling & 2-side grooving works.
Six-sided machining, drilling, grooving, milling, to meet the needs of different productions.
Double Clamp Feeding
Double clamps continuously feeding, automatically control the panel feeding and positioning according to the computer drilling program
Min. process size: 250*50mm;
Max. process size: 2800*1200mm
Rack and Pinion Transmission
Multi-point positioning makes it more accurate, and the processing accuracy of the six-sided drilling is also higher. The error can be controlled within ± 0.1mm.
Taiwan Syntec Control System
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.
Taiwan Syntec Servo Motor
1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling
Scan QR Code Loading Processing Files
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing, Convenient and efficient opertion
Compatible with Multiple Data Formats
The HUAHUA CAM operation software shows the users with visual interface, friendly and succinct form, definite meaning of parameter, easy operation
Convenient and efficient opertion
Dust Collection
Bottom dust collection device collect the scraps of the panel to ensure smooth processing.
Optional

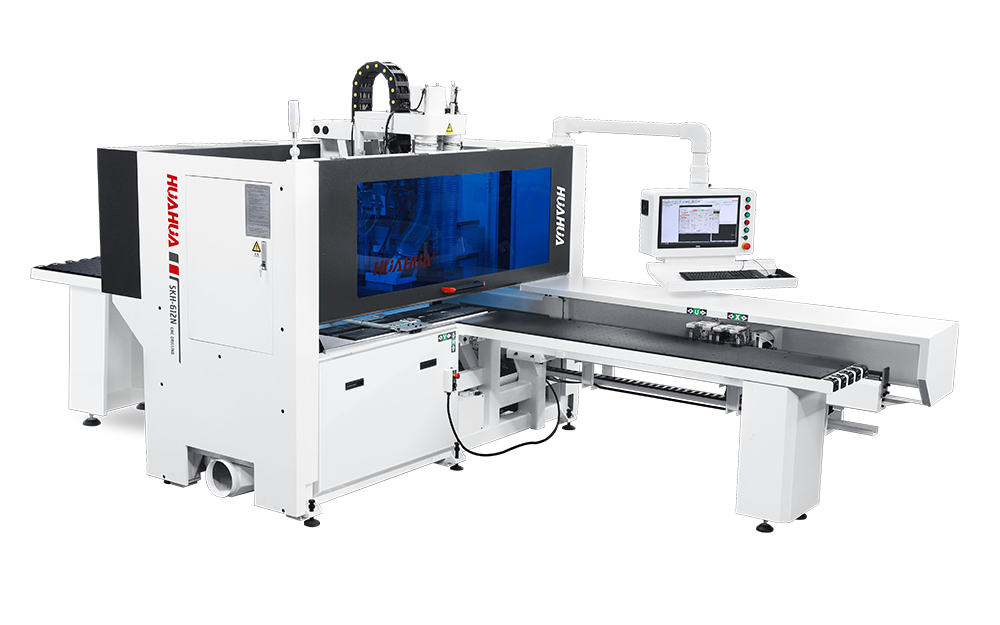

SKH-612N optional side slot and surface slotting, ATC tool changer and match with side discharge lifting unloading table A variety of unloading options to facilitate automatic connection.
For more options, please consult our sales.
