Features
Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: Vertical 9pcs + Horizontal 8pcs
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
Rack and Pinion Transmission
Both top and bottom drilling heads moving by Pinion and rack transmission, ensure process precision.
Side Aligning
Automatically control the side aligning stroke to adopt to the positioning needs of different panel widths.
Taiwan Syntec Control System
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.
Taiwan Syntec Servo Motor
1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling
Double clamps
1. Taiwan’s Syntec Servo Motor control clamp;
2. Fast and precise positioning;
3. The clamp moving speed can reach up to 130m/min.
Industrial PC + 21-inch color screen
Industrial PC + 21-inch color screen display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Scan QR Code Loading Processing Files
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing, Convenient and efficient opertion
Compatible with Multiple Data Formats
Convenient and efficient opertion
Dust Collection
Bottom dust collection device collect the scraps of the panel to ensure smooth processing.
Optional

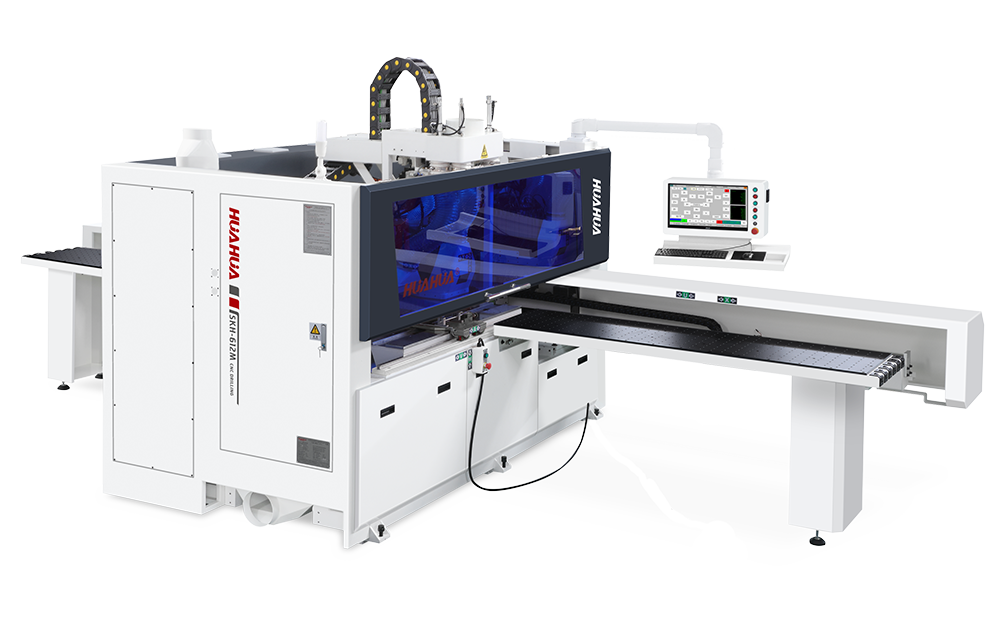

SKH-612M optional side slot and surface slotting, ATC tool changer and match with side discharge lifting unloading table A variety of unloading options to facilitate automatic connection.
For more options, please consult our sales.
