Features
Double Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: (Vertical 12 + Horizontal 8)*2 groups
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
Taiwan HIWIN Ball Screw Drive
Using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.
Taiwan Syntec Control System
Taiwan Syntec control system + Taiwan Syntec servo motor
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
Double Drilling Heads Simultaneous Processing
When two holes distance more than 85mm, two drilling heads simultaneous processing
Suit for Bathroom cabinet & kitchen cabinet production
Four tool magazines with automatic tool changing
The straight-line four-tool magazine allows for continuous and efficient processing, which can be used to make horn handles, embedded handles, laminos, and a variety of invisible parts.
Double gripper
Using C-shaped groove double clamping mechanism, according to the computer drilling program,
Automatically control board feeding and positioning to improve drilling accuracy.
The clamping hand will lift up and hang in the air when the clamping plate moves. The plate should be kept at a certain distance above the processing table to avoid damage to the plate surface due to collision between the plate and the table.
*Optional four-clamp handle
Taiwan Syntec Motor
Servo controlled gripper positioning quickly and accurately.
The gripper speed can reach up to 130m/min.
Flexible discharging
Optional front/rear/side discharging
Combined with the automatic lifting and unloading table, multiple unloading options are convenient.
Automated wiring
Frog leaping technology
Parabolic trajectory reduces idling time and enables fast drilling speed.
Improve efficiency
Optional

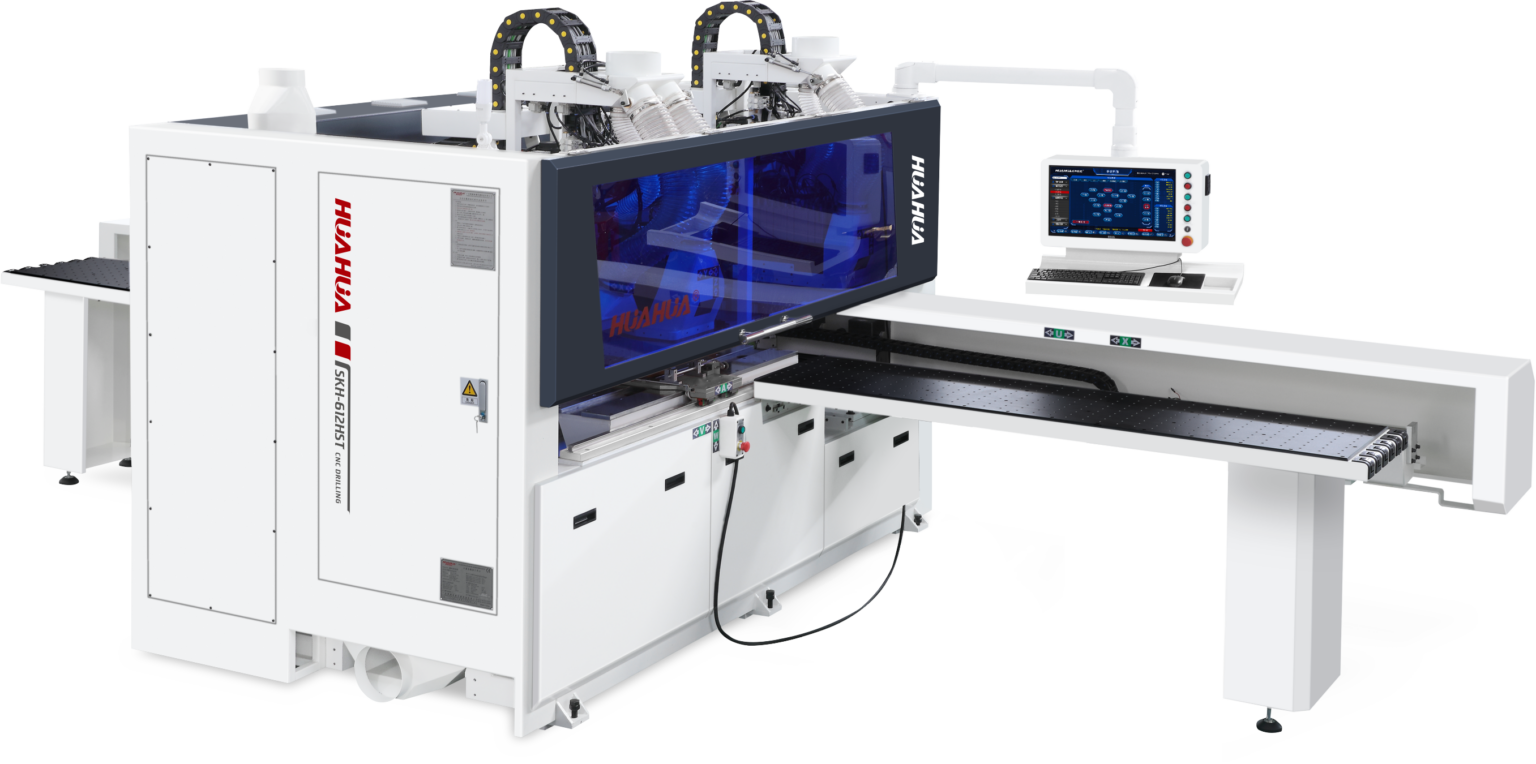

SKH-612HS can be equipped with front and rear rollers to become a automatic line, and can also be equipped with 4 clamps. For more options, please consult our salesman.
