Features
Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
4pcs Linear ATC Tool Magazine
Using 4pcs linear ATC tool magazine, suit for processing panel surface side and 4 sides slotting, Lamello processing, the corresponding tools can be automatically replaced according to different process requirements.
Side slotting and lamello processing
6kw high speed spindle with 4pcs ATC tool changer.
Can processing panel 6 sides milling, grooving and lamello works in one time.
Taiwan HIWIN Ball Screw Drive
Drilling heads using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.
Taiwan Syntec Control System
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
Taiwan Syntec Servo Motor
1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling
Double Clamps
The double clamps mechanism is adopted to automatically control the feeding and positioning of the panel according to the computer drilling program.
Industrial PC + 21-inch color screen
Using 21-inch color screen to control the display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Compatible with Multiple Data Formats
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing
Convenient and efficient opertion
Optional

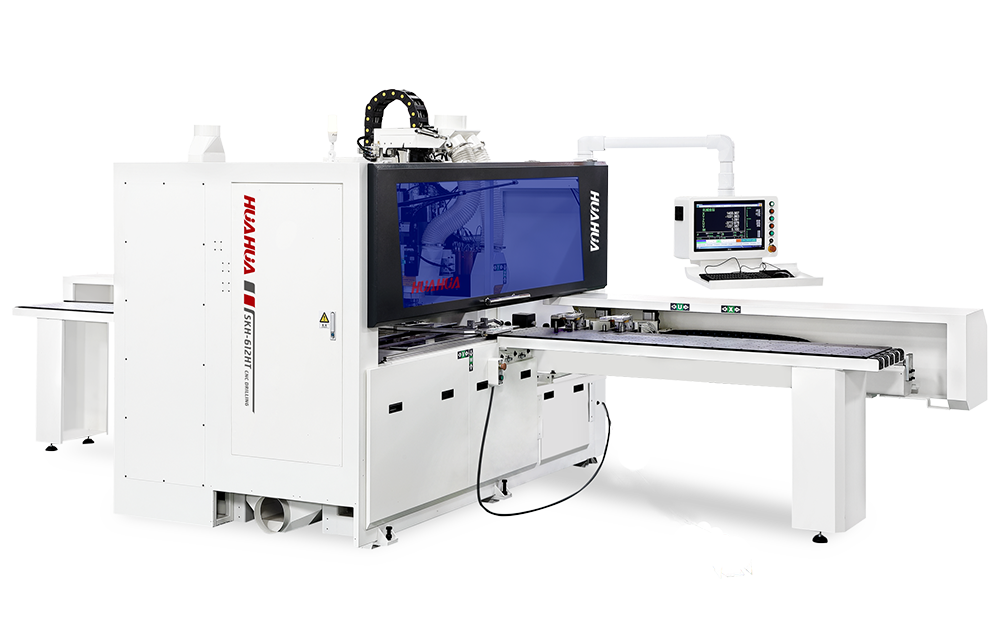

SKH-612HT machine can change air floating unloading table to be side discharge table or conveyor rollers
