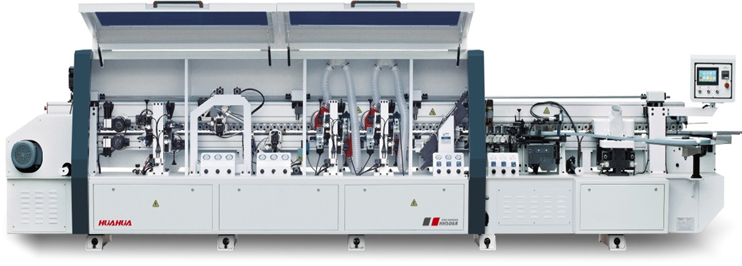

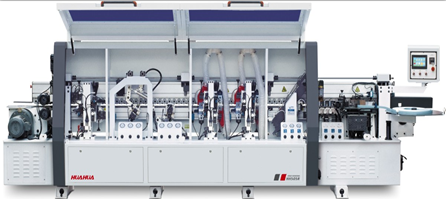

AUTOMATIC EDGE BANDING MACHINE (HH406R)

WITH PRE-HEAT SYSTEM (THIS FEATURE IS USEFUL FOR WINTER SEASON)

THIS HH406R EDGE BANDING IS MADE OF THICK-WALLED,
WELDED STEEL. THE RIBBING INSIDE THE CHASSIS ENSURES
A HIGH LEVEL OF STABILITY

2. . CONTROL PANEL:

1). HAS CHINESE AND ENGLISH TWO LANGUAGE
2). WITH ROTATABLE CONTROL BOX, CONVENIENT FOR OPERATORS TO OPERATE AT DIFFERENT PLACE.
3). FINE ADJUSTMENT OF THE MOVEMENT PARAMETE
4). EASY, SELF-EXPLANATORY REPRESENTATION OF THE UNITS AND THEIR FUNCTION
5). AUTOMATIC WARNING SYSTEM

EACH UNIT CONTROLLED BY INVT SEPARATE FREQUENCY CONVERTER INDEPENDENTLY.

FRANCE SCHNEIDER AND TAIWAN SHILIN ELECTRIC

TAIWAN DELTA PLC.

TAIWAN HONEYWELL ENCORDER

TAIWAN AIRTAC AIR CYLINDER

1). FEED SPEED 12-16-20 M/MIN
2). DRIVE MOTOR 2.2KW
3). PRECISION RUNNER AND GUIDING SURFACE
4). MINIMUM WORKPIECE LENGTH: 150*150MM
5). MINIMUM WORKPIECEWITH LENGTH 300* WIDTH 60MM
6). SEGMENTED, RUBBER COVERED SUPPORT PADS WITH QUICK CHANGE SYSTEM
7). SAFETY PROTECTION DEVICE, PROTECT OPERATOR HANDS OR FINGER WON’T BE HURT.

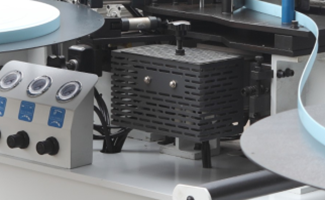

5. ROTARY TAPE COIL UNIT FOR TAPE COILS 0.4–3 MM:

ROTARY PLATE ROTATING ON BALL BEARINGS FOR TAPE COIL.
ROTARY PLATE DIAMETER 750MM.
EDGE THICKNESS 0.4-3MM

6. PULL OUT WORKPIECE SUPPORT:

PULL OUT WORKPIECE SUPPORT EXTENDABLE TO 450 MM WITH ROLLERS TO ASSIST IN THE PROCESSING OF LARGER WORKPIECES.

7. UPPER SPRING-LOADED PRESSURE BAR & ROLLERS:

PRESSURE BAR MADE OF TORSION RESISTANT STEEL CONSTRUCTION. WORKPIECE HEIGHT MANUALLY ADJUSTABLE FROM 8-60 MM. PRESS BEAM UP AND DOWN BY 0.37KW MOTOR. SMOOTH DOUBLE ROW STAGGERED UPPER ROLLERS DISTRIBUTE PRESSURE EVENLY ACROSS THE WORKPIECE. WORKPIECE DISTANCE CONTROL WITH SIGNAL LIGHT.

8. EDGE FEED FOR COILED AND STRIP EDGES:

FEED ROLLER GUIDES THE COILED MATERIAL ONTO THE WORKPIECE. THE ROLLER ENSURES A SYNCHRONISED FEED OF BOTH THE EDGE BAND AND WORKPIECE AND ENSURES AMINIMUM AMOUNT OF UNNECESSARY EDGE OVERHANG AND AVOIDS GLUE SPILLAGE OVER THE WORKPIECE EDGE. SINGLE FEED OF STRIP MATERIAL IS POSSIBLE.EDGE THICKNESS 0.4–3.0 MM

9. WORKPIECE FEED AND FEED GUIDE:

WORKPIECE INFEED AND INFEED FENCE WITH MANUAL ADJUSTMENT.  THICKEN STAINLESS STEEL FEEDING
GIVEN PLATES, WILL ENSURE PANEL SURFACE WON'T BE SCRATCHED BY THE PLATE.
THE DEPTH OF CUT FOR THE PREMILLING UNIT CAN BE MANUALLY SET BETWEEN 0-2MM ON THE FEED GUIDE.
THE DEPTH OF CUT IS DISPLAYED USING A DIGITAL COUNTER

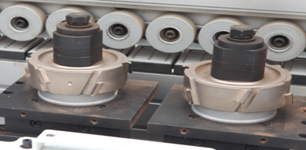

PREMILLING UNIT WITH ACTIVATION CONTROLLED DIAMOND CUTTERS, ROTATING SPEED 12000 RPM, 2X2.2 KW (3 HP), MAX. DEPTH OF CUT 2 MM, MAX. WORKPIECE HEIGHT 60 MM, PREMILLING CUTTERS WITH DIAMOND CUTTERS WIDTH 65MM; ENSURES RIGHT ANGLED AND CHIP FREE WORKPIECE EDGES

11. PRESSURE ROLLER UNIT:

1 DRIVEN AND 3 CONICAL CONTACT ROLLERS MAKE UP THE PRESSURE ROLLER UNIT. THE ROLLER PRESSURE CAN BE ADJUSTED MANUALLY DEPENDING ON THE EDGE MATERIAL BEING USED.THE ACTIVATION CONTROL PROTECTS THE WORKPIECE ENDS FROM COMPRESSION/DAMAGE. THE MOTOR ROLLER ENSURES A SYNCHRONISED FEED OF BOTH THE EDGE BAND AND WORKPIECE AND ENSURES A MINIMUM AMOUNT OF UNNECESSARY EDGE OVERHANG AND GLUE SPILLAGE OVER THE WORKPIECE EDGE.

12. GLUEPOT:

REQUIRES ONLY 15 MINUTES TO REACH OPERATING TEMPERATURE. THE TOOL FREE QUICK CHANGE SYSTEM GUARANTEES QUICK CLEANING AND CHANGE OVER TIMES WHEN CHANGING THE GLUE OR COLOUR. THE SYNCHRONISED, FINE ADJUSTABLE GLUE ROLLER ENSURES THE RIGHT APPLICATION AMOUNT OF GLUE.

13. END TRIMMING UNIT WITH TWO HIGH FREQUENCY MOTORS:

0.35 KW (1 HP); 12000 RPM; HW SAW BLADES Z 24 D-100 X 20 X 3.2 MM,

14. END TRIMMING UNIT LUBRICATION SYSTEM:

HIGH QUALITY LUBRICATION SYSTEM FOR ED TRIMMING RAILS, ESURE CUT PRECISION AND LOG TIME STABLE USE

15. FINE TRIMMING SYSTEM:

2 HIGH FREQUENCY MOTOR FOR UPPER AND LOWER EDGE WITH 0.75 KW (1 HP); 12000 RPM. WITH 2PCS 6 TEETH R2 CUTTERS. THE MANUAL 2-AXIS POSITION CONTROL OF BOTH HEIGHT AND DEPTH ENSURES 100% REPEATABILITY.

 16. CORNER ROUNDING UNIT

CORNER ROUNDING UNIT FOR SOFT AND POSTFORMING WORKPIECES FOR THE PROCESSING OF THE ENDS OF THE PANEL WITH 0.4-3.0 MM EDGE MATERIAL AND 10-40 MM WORKPIECE HEIGHT, WITH 2PCS 0.37KW MOTORS.

17.  SCRAPING UNIT, MECHANICAL ADJUSTMENT FOR R=2MM

UPPER AND LOWER RADIUS SCRAPER FOR THE PROCESSING OF 2 MM PLASTIC EDGE MATERIAL. WITH R2 CUTTER.MANUALLY ENABLED AND DISABLED. IF CUSTOMER HAS 3MM THICKNESS EDGE BELT WILL USE R3 CUTTER

18. BUFFING UNIT:

UPPER AND LOWER BUFFING UNIT ENSURES A PERFECT FINISH ON THE EDGE RADIUS AND REMOVES ANY COLOUR IRREGULARITIES.

19. PNEUMATIC:

BUS CONTROLLED CENTRAL PNEUMATIC VALVE UNIT. OPTIMISED MAINTENANCE UNIT WITH PRESSURE SENSOR.
EXTRA CONTROL AIR SUPPLY AND PRESSURE BUILD-UP VALVE

20. INCHING SWITCH:

INCHING SWITCH, WHICH WILL CONVENIENCE FOR OPERATER TO DEBUGGING EACH FUNCTION INDEPENDENTLY.
